MAIN FEATURES
- Forged “C” Hook
- Hook confirms IS3815 design
- Uses sealed bearings in pulleys
- Uses high quality Nylon pulleys (CI/MS available on request)
- Modular Design ensures no rubbing of wire rope with pulley guards
- Excellent aesthetics
- Strong safety latch with spring is provided
- Rams horn hook is also available
- SWL up to 100t is available in customized design

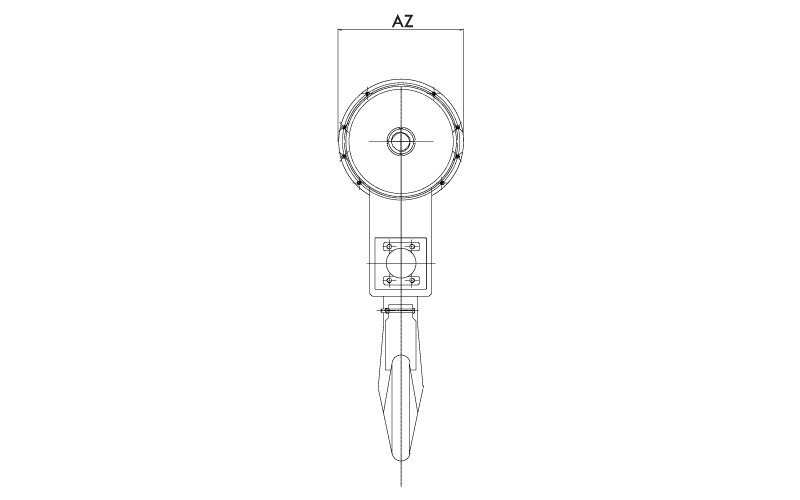

Technical Specifications
| Model | SWL (ton) | Falls | Wire Rope Dia | Pulley Dia | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| d | D | A1 | A2 | A3 | R | H | H1 | H2 | |||
| OHA8016 | 16 | 8 | 12/14 | 295 | 400 | 356 | 95 | 100 | 875 | 552 | 178 |
| OHA8020 | 20 | 8 | 14/16 | 295 | 400 | 356 | 95 | 112 | 1022 | 582 | 178 |
