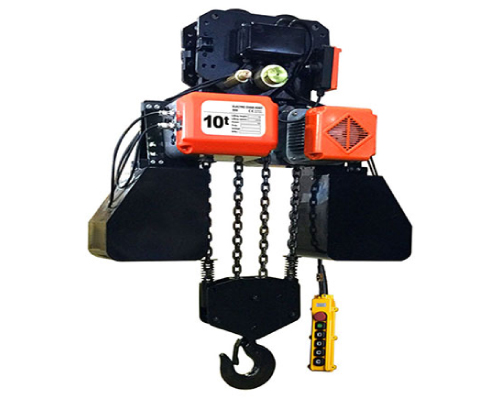

Electric Chain Hoist

MAIN FEATURES

  1. Available in hook suspension as well as fixed suspension with manual/geared/motorized trolley
  2. Uses Japanese standard FEC Load Chain
  3. 360 degree swiveling “C” hook with safety latch
  4. Single phasing and phase fault protection
  5. Micro limit switch for UP and DOWN motion
  6. Uses hardened and ground gears
  7. Spring buffers on chain ends to avoid damages
  8. Compact gearbox with aluminum cast body
  9. Overheat protection (Thermister) for motor
  10. In-built slip clutch to prevent over loading
  11. Custom designed chain wheel
Download Details

Technical Specifications

Model Capacity (t) Classifcation FEM/IS Duty Cycle Lifting Speed (m/min) Hoist Motor (kW) Load Chain Size Dimension (mm) Load Chain Falls Net Weight (kg) for 3m Lift
SHH-A-005-1S 0.5 2m/M5 40% 7.6 0.9 Ø 6.3x19 1 46
SHH-A-005-1D 26.6%/13.4% 7.6/2.5 0.9/0.3 54
SHH-A-010-1S 1 2m/M5 40% 5.0 1.1 Ø 8.0x24 1 50
SHH-A-010-1D 26.6%/13.4% 5.0/1.7 1.1/0.37 62
SHH-A-020-1S 2 2m/M5 40% 2.5 1.1 Ø 8.0x24 2 60
SHH-A-020-1D 26.6%/13.4% 2.5/0.85 1.1/0.37 73
SHH-A-030-1S 3 2m/M5 40% 6.0 3.0 Ø 11.2x34 1 102
SHH-A-030-1D 26.6%/13.4% 6.0/2.0 3.0/1.0 124
SHH-A-050-1S 5 2m/M5 40% 3.0 3.0 Ø 11.2x34 2 124
SHH-A-050-1D 26.6%/13.4% 3.0/1.0 3.0/1.0 146

Dimensions

Model Capacity (t) Hmin (mm) A (mm) B (mm) C (mm) D (mm) I (mm) J (mm) K (mm)
SHH-A-005-1S 0.5 410 142 102 329 307 276 610 31
SHH-A-005-1D 334
SHH-A-010-1S 1 460 142 102 329 307 276 630 38
SHH-A-010-1D 354
SHH-A-020-1S 2 650 185 59 329 307 276 720 45
SHH-A-020-1D 354
SHH-A-030-1S 3 525 185 165 329 336 430 780 45
SHH-A-030-1D 471
SHH-A-050-1S 5 860 240 110 358 336 430 870 61
SHH-A-050-1D 471

Motorized Trolley

Model Capacity (t) Speed (m/min) Power (kw) Wheel Dia. Total Height (mm)
DC-A-010 1 15 0.3 75 264
DC-A-020 1 15 0.3 75 264
DC-A-030 3 18 0.4 110 342
DC-A-050 5 12 0.4 110 342
